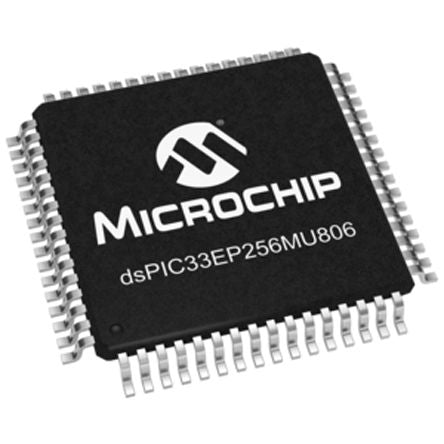

DSPIC33EP256MU806-E/PT Microchip, 16bit DSP 60MHz 280 kB Flash 64-Pin TQFP [DSPIC33EP256MU806-E/PT]; 823-7812
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 60MHz |
| Data Bus Width | 16bit |
| RAM Size | 28 kB |
| Instruction Set Architecture | Code Efficient |
| Program Memory Size | 280 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 64 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 4 |
| PWM Channels | 6 |
| Number of I2C Channels | 2 |
| Height | 1.05mm |
| Maximum Operating Temperature | +125 °C |
| ADC Resolution | 10 bit, 12 bit |
| Timer Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Number of SPI Channels | 4 |
| Dimensions | 10 x 10 x 1.05mm |
| Length | 10mm |
| Pulse Width Modulation | 16 (8 x 16 bit) |
| ADC Channels | 24 |
| Number of CAN Channels | 2 |
| USB Channels | 1 |
| Number of Timers | 9 |
| Number of ADC Units | 2 |
| Number of PWM Units | 16 |
| ADCs | 2(24 x 10/12 bit) |
| Width | 10mm |
| Timers | 9 x 16 bit |
