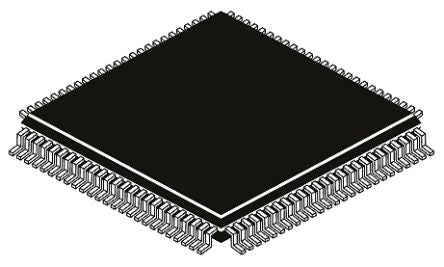

Microchip dsPIC33EP256MU810-I/PT, 16bit PIC Microcontroller, 40MHz, 280 kB Flash, 100-Pin TQFP [DSPIC33EP256MU810-I/PT]; 819-5418
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | DSPIC33EP |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 280 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 28 kB |
| USB Channels | 1 x OTG |
| Number of PWM Units | 16 |
| ADC Channels | 32 |
| Number of SPI Channels | 4 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 4 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 16 (12 x 16 bit) |
| Dimensions | 12 x 12 x 1.05mm |
| Timers | 4 x 32 bit, 9 x 16 bit |
| Width | 12mm |
| PWM Channels | 12 |
| Height | 1.05mm |
| ADCs | 2 (32 x 10 bit) |
| Length | 12mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 2 |
| Number of I2C Channels | 2 |
| Number of Timers | 27 |
| Timer Resolution | 16 bit, 32 bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 2 |
| PWM Resolution | 16bit |
