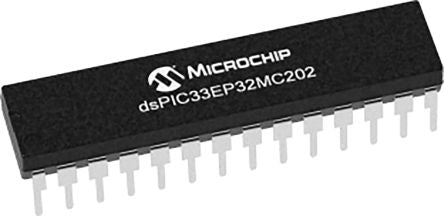

DSPIC33EP32MC202-I/SP Microchip DSPIC, 16bit Digital Signal Processor DSP 60MHz 32 kB Flash 28-Pin SPDIP [DSPIC33EP32MC202-I/SP]; 177-1761
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 60MHz |
| Series | DSPIC |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 4 kB |
| Instruction Set Architecture | C |
| Program Memory Size | 32 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | ALU |
| Mounting Type | Surface Mount |
| Package Type | SPDIP |
| Pin Count | 28 |
| Typical Operating Supply Voltage | 3.3 V |
| Number of UART Channels | 2 |
| Width | 7.37mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 1.4 x 0.29 x 0.15in |
| Automotive Standard | AEC-Q100 |
| ADC Channels | 6 |
| Number of Timers | 2 |
| Number of ADC Units | 1 |
| Number of PWM Units | 1 |
| Number of I2C Channels | 2 |
| Timers | 1 (2 x 32 bit), 1 (5 x 16 bit) |
| Height | 3.81mm |
| Timer Resolution | 16 bit, 32 bit |
| Maximum Operating Temperature | +85 °C |
| ADCs | 1 (6 x 12 bit) |
| Number of SPI Channels | 2 |
| PWM Channels | 6 |
| Length | 35.56mm |
| Pulse Width Modulation | 1 (6 Channel) |
| ADC Resolution | 12bit |
