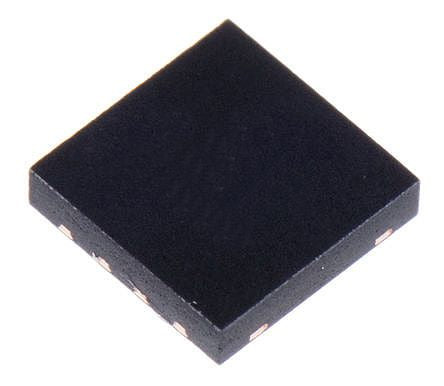

Microchip MCP4811-E/MC, 10 bit Serial DAC, 8-Pin DFN [MCP4811-E/MC]; 165-2139
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | Internal |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Settling Time | 4.5µs |
| Output Polarity | Bipolar |
| Full Scale Error | 3.5LSB |
| Integral Nonlinearity Error | ±3.5LSB |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2 x 3 x 0.95mm |
| Length | 2mm |
| Height | 0.95mm |
| Width | 3mm |
