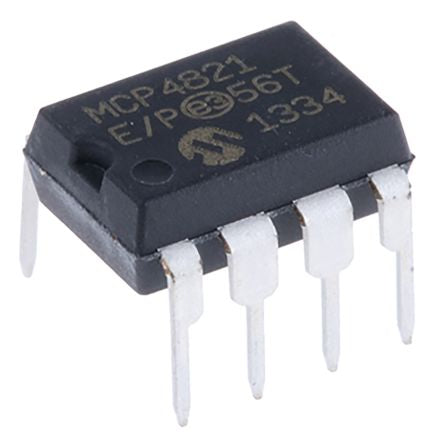

Microchip MCP4821-E/P, 12 bit Serial DAC, 8-Pin PDIP [MCP4821-E/P]; 165-2133
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | Internal |
| Architecture | Resistor String |
| Pin Count | 8 |
| Maximum Settling Time | 4.5µs |
| Output Polarity | Bipolar |
| Full Scale Error | 12LSB |
| Length | 10.16mm |
| Height | 4.95mm |
| Integral Nonlinearity Error | ±12LSB |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 10.16 x 7.11 x 4.95mm |
| Width | 7.11mm |
| Minimum Operating Temperature | -40 °C |
