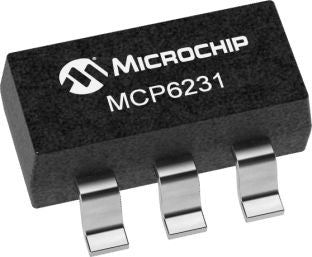

MCP6231T-E/OT Microchip,, Op Amp, RRIO, 300kHz, 6 V, 5-Pin SOT-23 [MCP6231T-E/OT]; 165-5150
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 6 V |
| Typical Gain Bandwidth Product | 300kHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.15V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 1.8 V |
| Typical Voltage Gain | 110 (Open Loop) dB |
| Offset Voltage | 5mV |
| Rail to Rail | Rail to Rail Input/Output |
| Width | 1.8mm |
| Maximum Input Voltage | 6 V |
| Typical Input Voltage Noise Density | 52nV/√Hz |
| Input Voltage Range | 1.8 → 6 V |
| Input Offset Current | 1pA |
| Height | 1.3mm |
| Length | 3.1mm |
| Output Current | ±30 mA |
| Dimensions | 3.1 x 1.8 x 1.3mm |
