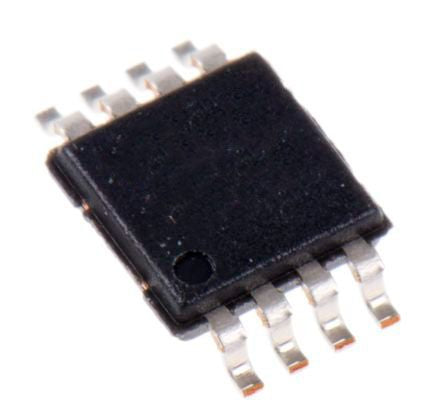

Microchip Technology, MCP6V51-E/MS [MCP6V51-E/MS]; 187-7726
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Zero Drift |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 4.5 → 45 V |
| Typical Gain Bandwidth Product | 2MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 1.2V/µs |
| Maximum Operating Frequency | 1 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Offset Voltage | ±15µV |
| Maximum Input Voltage | 45 V |
| Typical Voltage Gain | 164 dB |
| Minimum Input Voltage | 4.5 V |
| Width | 3mm |
| Dimensions | 3 x 3 x 0.95mm |
| Output Current | ±50 mA |
| Input Voltage Range | 4.5 → 45 V |
| Length | 3mm |
| Typical Input Voltage Noise Density | 10.2nV/√Hz |
| Height | 0.95mm |
