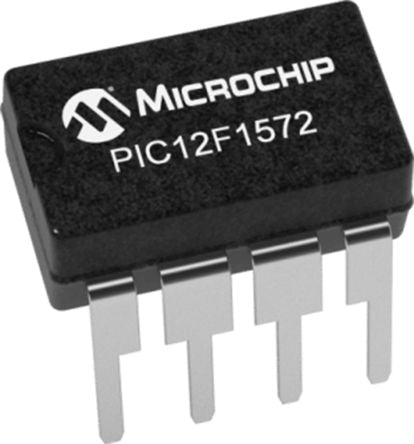

Microchip Technology PIC12F1572-E/P, 8bit Microcontroller, 32MHz, 2 kwords Flash, 8-Pin PDIP [PIC12F1572-E/P]; 177-0495
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC12F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Data Bus Width | 8bit |
| Program Memory Size | 2 kwords |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| ADC Channels | 4 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Number of Timers | 2 |
| Program Memory Type | Flash |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADCs | 1 (4 x 10 bit) |
| Timer Resolution | 8 bit, 16 bit |
| Height | 4.83mm |
| PWM Channels | 3 |
| Width | 7.11mm |
| Length | 10.16mm |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Dimensions | 0.4 x 0.28 x 0.19in |
| Pulse Width Modulation | 1 (3 x 16 bit) |
