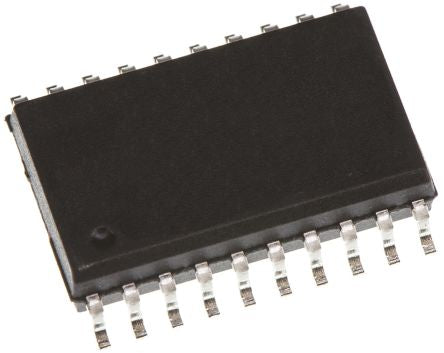

Microchip PIC16F1509-I/SO, 8bit PIC Microcontroller, 20MHz, 8192 words Flash, 20-Pin SOIC [PIC16F1509-I/SO]; 159-7420
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 8192 words |
| Maximum Frequency | 20MHz |
| RAM Size | 512 B |
| Number of PWM Units | 4 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Width | 7.5mm |
| Number of USART Channels | 1 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Dimensions | 12.8 x 7.5 x 2.05mm |
| Pulse Width Modulation | 4(10 bit) |
| Program Memory Type | Flash |
| Number of LIN Channels | 1 |
| ADC Resolution | 10bit |
| Height | 2.05mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 12 x 10 bit |
| Length | 12.8mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Instruction Set Architecture | RISC |
