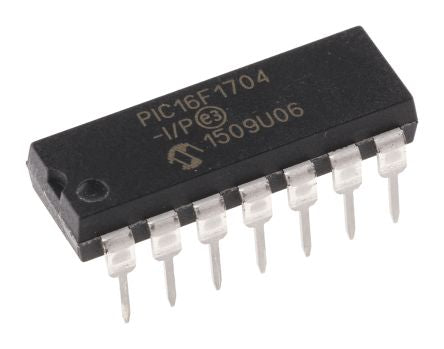

Microchip PIC16F1704-I/P, 8bit PIC Microcontroller, 32MHz, 4096 words Flash, 14-Pin PDIP [PIC16F1704-I/P]; 159-7457
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 14 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 4096 words |
| Maximum Frequency | 32MHz |
| RAM Size | 512 B |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Dimensions | 19.69 x 7.11 x 4.95mm |
| Timers | 1 x 16 bit, 4 x 8 bit |
| Number of USART Channels | 1 |
| Width | 7.11mm |
| Number of LIN Channels | 1 |
| PWM Channels | 2 |
| Height | 4.95mm |
| Timer Resolution | 8 bit, 16 bit |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 x 10 bit |
| Number of I2C Channels | 1 |
| Number of Timers | 5 |
| Number of UART Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 19.69mm |
| ADCs | 8 x 10 bit |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
