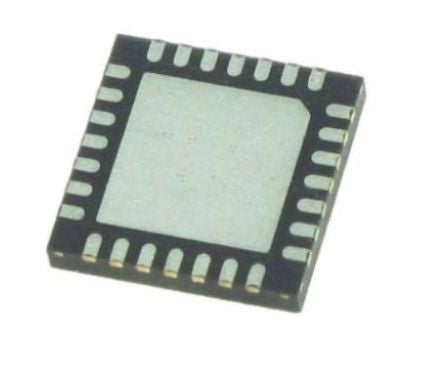

Microchip PIC16F19156-I/MV, 8bit 8 bit CPU Microcontroller, 32MHz, 28 kB Flash, 28-Pin UQFN [PIC16F19156-I/MV]; 144-9549
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F191 |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | 8 bit CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 28 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 2.048 kB |
| Number of PWM Units | 1 |
| ADC Channels | 20 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of UART Channels | 2 |
| Number of I2C Channels | 1 |
| Number of Timers | 2 (16-bit), 2 (8-bit) |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| PWM Channels | 2 |
| Timers | 1 (2 x 16 bit), 1 (2 x 8 bit) |
| Number of USART Channels | 2 |
| Width | 4mm |
| Dimensions | 4 x 4 x 0.5mm |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Instruction Set Architecture | RISC |
| Height | 0.5mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (20 x 12 bit) |
| Length | 4mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of LIN Channels | 1 |
