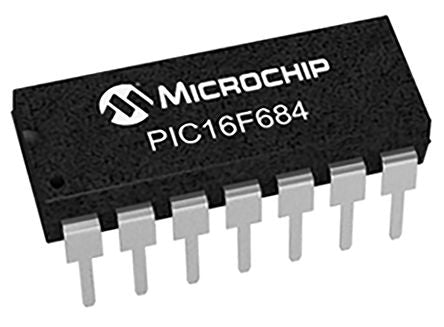

Microchip PIC16F684-E/P, 8bit PIC16F Microcontroller, 20MHz, 3.5 kB Flash, 14-Pin PDIP [PIC16F684-E/P]; 165-4094
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 14 |
| Device Core | PIC16F |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2 → 5.5 V |
| ADC Resolution | 10bit |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 x 10 bit |
| Dimensions | 19.685 x 7.112 x 4.953mm |
| Length | 19.69mm |
| Timer Resolution | 8 bit, 16 bit |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Width | 7.112mm |
| Height | 4.953mm |
| ADCs | 1(8 x 10 bit) |
| Maximum Operating Temperature | +125 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
