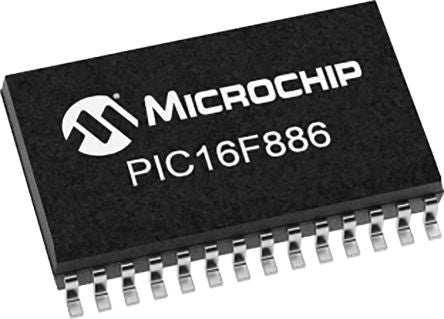

Microchip Technology PIC16F886-E/SS, 8bit PIC Microcontroller, 20MHz, 14 kB Flash, 28-Pin SSOP [PIC16F886-E/SS]; 177-2133
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 368 B |
| Number of PWM Units | 1 |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Number of Timers | 2 |
| Number of I2C Channels | 1 |
| Dimensions | 10.5 x 5.6 x 1.85mm |
| Pulse Width Modulation | 1 (4 x 10 bit) |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Automotive Standard | AEC-Q100 |
| Length | 10.5mm |
| ADCs | 1 (11 x 10 bit) |
| Timer Resolution | 8 bit, 16 bit |
| Height | 1.85mm |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of USART Channels | 1 |
| Data Rate | 10Mbit/s |
| PWM Channels | 4 |
| Timers | 1 (1 x 16 bit), 1 (2 x 8 bit) |
| Width | 5.6mm |
