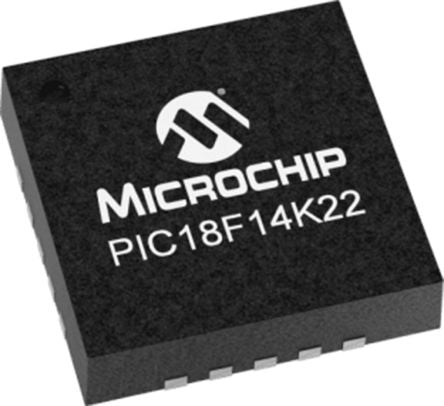

Microchip Technology PIC18F14K22-E/ML, 8bit PIC Microcontroller, 64MHz, 16 kB Flash, 20-Pin QFN [PIC18F14K22-E/ML]; 177-2642
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 512 B |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 4 x 4 x 0.95mm |
| Number of USART Channels | 1 |
| ADC Resolution | 10bit |
| Data Rate | 16Mbit/s |
| Width | 4mm |
| PWM Channels | 1 |
| Height | 0.95mm |
| Timer Resolution | 8 bit, 16 bit |
| PWM Resolution | 16bit |
| Number of Timers | 2 |
| ADCs | 1 (12 x 10 bit) |
| Length | 4mm |
| Number of UART Channels | 1 |
| Maximum Operating Temperature | +125 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 (1 x 16 bit) |
| Number of I2C Channels | 1 |
