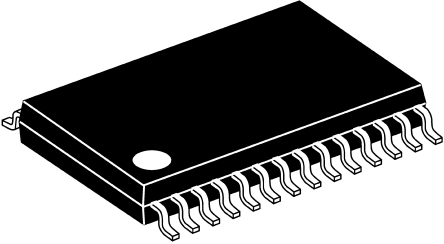

Microchip PIC18F24K20-I/SP, 8bit PIC Microcontroller, 64MHz, 16 kB, 256 B Flash, 28-Pin SPDIP [PIC18F24K20-I/SP]; 564-204
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB, 256 B |
| Maximum Frequency | 64MHz |
| RAM Size | 768 B |
| Number of PWM Units | 2 |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 to 3.6 V |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Dimensions | 1.4 x 0.295 x 0.15in |
| Timers | 1 x 8 bit, 3 x 16 bit |
| Number of USART Channels | 1 |
| Height | 3.81mm |
| Timer Resolution | 8 bit, 16 bit |
| Pulse Width Modulation | 1(CCP), 1(ECCP) |
| ADCs | 11 x 10 bit |
| Number of ADC Units | 1 |
| Width | 0.295in |
| Maximum Operating Temperature | +85 °C |
| Length | 35.56mm |
| Minimum Operating Temperature | -40 °C |
