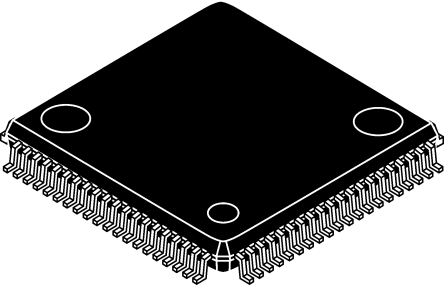

Microchip PIC18F86K22-I/PT, 8bit PIC Microcontroller, 64MHz, 1 kB, 64 kB Flash, 80-Pin TQFP [PIC18F86K22-I/PT]; 165-3299
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 1 kB, 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 4 kB |
| Number of PWM Units | 10 |
| ADC Channels | 24 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of Timers | 11 |
| Number of I2C Channels | 2 |
| ADC Resolution | 12bit |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Length | 12mm |
| ADCs | 24 x 12 bit |
| Dimensions | 12 x 12 x 1.05mm |
| Height | 1.05mm |
| Width | 12mm |
| Number of USART Channels | 2 |
| Timers | 5 x 16 bit, 6 x 8 bit |
| Pulse Width Modulation | 3(ECCP), 7(CCP) |
| Timer Resolution | 8 bit, 16 bit |
