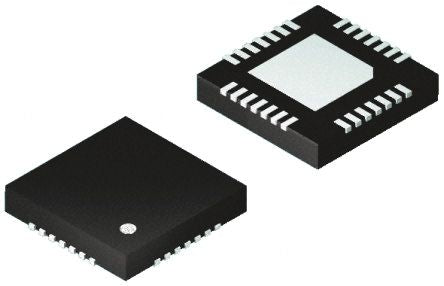

Microchip PIC18LF24K22T-I/MV, 8bit PIC Microcontroller, 64MHz, 16 kB Flash, 28-Pin UQFN [PIC18LF24K22T-I/MV]; 821-0687
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 768 B |
| Number of PWM Units | 2 |
| ADC Channels | 19 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of Timers | 7 |
| Number of I2C Channels | 2 |
| Pulse Width Modulation | 2(CCP) |
| Program Memory Type | Flash |
| Dimensions | 4 x 4 x 0.5mm |
| Timers | 3 x 8 bit, 4 x 16 bit |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Number of USART Channels | 2 |
| Width | 4mm |
| Height | 0.5mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1(19 x 10 bit) |
| Length | 4mm |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 2 |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
