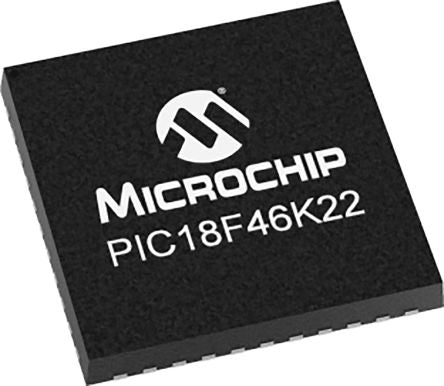

Microchip Technology PIC18LF46K22-I/MV, 8bit PIC Microcontroller, 64MHz, 32 kB Flash, 40-Pin UQFN [PIC18LF46K22-I/MV]; 177-2508
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18LF |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 3.968 kB |
| Number of PWM Units | 1 |
| ADC Channels | 30 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| PWM Resolution | 10bit |
| Length | 5mm |
| ADCs | 1 (30 x 10 bit) |
| Dimensions | 5 x 5 x 0.5mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 (3 x 8 bit), 1 (4 x 16 bit) |
| Number of USART Channels | 2 |
| Number of Timers | 2 |
| Number of ADC Units | 1 |
| ADC Resolution | 10bit |
| Width | 5mm |
| PWM Channels | 2 |
| Height | 0.5mm |
| Timer Resolution | 8 bit, 16 bit |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
