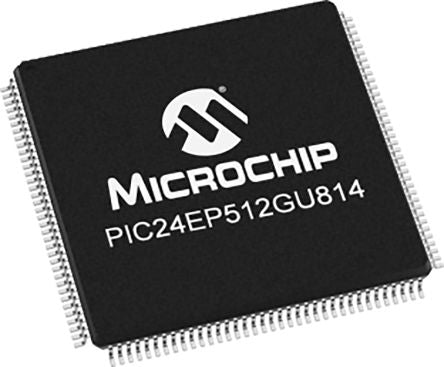

Microchip Technology PIC24EP512GU814-I/PH, 16bit PIC Microcontroller, 60MHz, 536 kB Flash, 144-Pin TQFP [PIC24EP512GU814-I/PH]; 177-4003
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC24E |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 536 kB |
| Maximum Frequency | 60MHz |
| RAM Size | 52 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 32 |
| Number of SPI Channels | 4 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Timers | 2 |
| Number of CAN Channels | 2 |
| Number of I2C Channels | 2 |
| Height | 1.05mm |
| PWM Channels | 16 |
| Width | 16mm |
| ADC Resolution | 10 bit, 12 bit |
| Pulse Width Modulation | 1 (16 Channel) |
| Dimensions | 16 x 16 x 1.05mm |
| ADCs | 1 (32 x 10 bit), 1 (32 x 12 bit) |
| Length | 16mm |
| Number of UART Channels | 4 |
| Automotive Standard | AEC-Q100 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Timer Resolution | 16 bit, 32 bit |
| Number of ADC Units | 2 |
