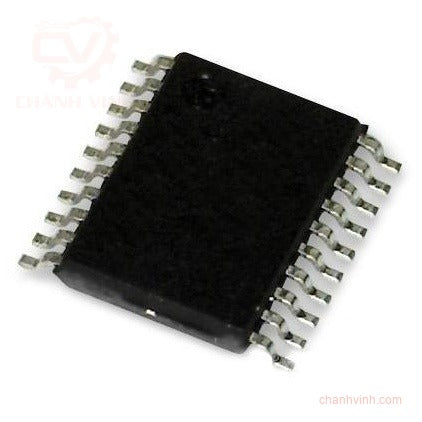

MICROCHIP TECHNOLOGY IC: A/D converter; Ch: 4; 24bit; 153.6ksps; 2.7÷3.6V; TSSOP20; tube [MCP3564R-E/ST]
The Microchip low-noise 24-bit Delta-Sigma Analog-to-Digital Converter (ADC), with eight single-ended or four differential input channels and programmable data rate of up to 153.6 kSPS. It offers integrated features such as internal Vref, oscillator, temperature sensor and burnout sensor detection, in order to reduce system component count and total solution cost. Internal 2.4V Vref Internal Oscillator optional Internal Temperature Sensor Burnout Current sources for sensor output or Short detection Dedicated IRQ Pin for easy synchronization 16-bit CRC security
The Microchip low-noise 24-bit Delta-Sigma Analog-to-Digital Converter (ADC), with eight single-ended or four differential input channels and programmable data rate of up to 153.6 kSPS. It offers integrated features such as internal Vref, oscillator, temperature sensor and burnout sensor detection, in order to reduce system component count and total solution cost.
Internal 2.4V Vref
Internal Oscillator optional
Internal Temperature Sensor
Burnout Current sources for sensor output or Short detection
Dedicated IRQ Pin for easy synchronization
16-bit CRC security
