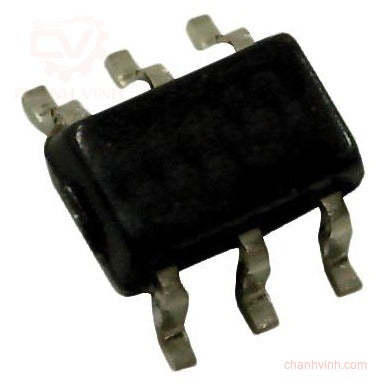

MICROCHIP TECHNOLOGY IC: PIC microcontroller; 0.896kB; 16MHz; ADC,PWM; SMD; 896kBFLASH [PIC10F322T-E/OT]
The Microchip PIC10F322 is the next generation of the PIC10F family that provides an increased feature set and increased performance over the existing PIC10F family that customers have requested. These new PIC10F32X variants are based on the standard mid-range architecture vs. the baseline for the PIC10F2XX family and provide interrupts, deeper hardware stack, PWM, emulated data EE, increased 16MHz internal oscillator, lower power, and 3 8-bit ADCs, as well as a few new integrated peripherals. Flash Program Memory with self read or write capability Mid range core 128 B of Non volatile Data Storage 35 Instruction 8 Stack Levels hardware interrupts Low Power Internal 16MHz or 31 kHz oscillator 2 stand alone PWM's 3 channel 8b ADC with Vref Integrated Temperature Indicator Configurable Logic Cell Complimentary Waveform Generator Numerically Controlled Oscillator Two 8-bit Timers TMR0 and TMR2 Extended Watchdog Timer Brown-Out Reset 25mA Source or Sink current I/O In Circuit Serial Programming Wide Operation Voltage Variant F 2.3V – 5.5V Extreme Low Power LF Variant 1.8V – 3.6V These new integrated peripherals include a new Configurable Logic Cell which allows the user to do simple Boolean functions, a Numerically Controlled Oscillator module which provides two functions, a PWM with a fixed 50% duty cycle and an increased frequency resolution function that lends itself well to applications such as ballast control, a Complementary Waveform Generator which provides a complementary waveform to various inputs sources including the PWM, the CLC, or NCO, and finally an integrated temperature indicator for low cost temperature measurements.
The Microchip PIC10F322 is the next generation of the PIC10F family that provides an increased feature set and increased performance over the existing PIC10F family that customers have requested. These new PIC10F32X variants are based on the standard mid-range architecture vs. the baseline for the PIC10F2XX family and provide interrupts, deeper hardware stack, PWM, emulated data EE, increased 16MHz internal oscillator, lower power, and 3 8-bit ADCs, as well as a few new integrated peripherals.
Flash Program Memory with self read or write capability
Mid range core
128 B of Non volatile Data Storage
35 Instruction 8 Stack Levels hardware interrupts
Low Power Internal 16MHz or 31 kHz oscillator
2 stand alone PWM's
3 channel 8b ADC with Vref
Integrated Temperature Indicator
Configurable Logic Cell
Complimentary Waveform Generator
Numerically Controlled Oscillator
Two 8-bit Timers TMR0 and TMR2
Extended Watchdog Timer
Brown-Out Reset
25mA Source or Sink current I/O
In Circuit Serial Programming
Wide Operation Voltage Variant F 2.3V – 5.5V
Extreme Low Power LF Variant 1.8V – 3.6V
These new integrated peripherals include a new Configurable Logic Cell which allows the user to do simple Boolean functions, a Numerically Controlled Oscillator module which provides two functions, a PWM with a fixed 50% duty cycle and an increased frequency resolution function that lends itself well to applications such as ballast control, a Complementary Waveform Generator which provides a complementary waveform to various inputs sources including the PWM, the CLC, or NCO, and finally an integrated temperature indicator for low cost temperature measurements.
