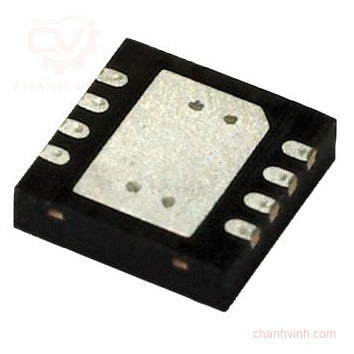

MICROCHIP TECHNOLOGY IC: PIC microcontroller; 768B; 4MHz; ICSP; 2÷5.5VDC; SMD; DFN8; tube [PIC12F508-I/MC]
The Microchip PIC12F508 devices from Microchip Technology are low cost, high performance, 8 bit, fully static, flash based CMOS microcontrollers. They employ a RISC architecture with only 33 single word or single cycle instructions. All instructions are single cycle except for program branches, which take two cycles. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8 bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly. Precision 4 MHz internal oscillator Baseline Core with 33 Instructions 2 Stack Levels All single cycle Instructions except for program branches which are two cycles 12 bit wide instructions 8bit wide data path 25 mA source or sink current I/O Low power 100nA sleep current One 8-bit timer TMR0 Watchdog timer In Circuit Serial Programming capability In Circuit debugging support Programmable code protection
The Microchip PIC12F508 devices from Microchip Technology are low cost, high performance, 8 bit, fully static, flash based CMOS microcontrollers. They employ a RISC architecture with only 33 single word or single cycle instructions. All instructions are single cycle except for program branches, which take two cycles. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8 bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.
Precision 4 MHz internal oscillator
Baseline Core with 33 Instructions 2 Stack Levels
All single cycle Instructions except for program branches which are two cycles
12 bit wide instructions
8bit wide data path
25 mA source or sink current I/O
Low power 100nA sleep current
One 8-bit timer TMR0
Watchdog timer
In Circuit Serial Programming capability
In Circuit debugging support
Programmable code protection
