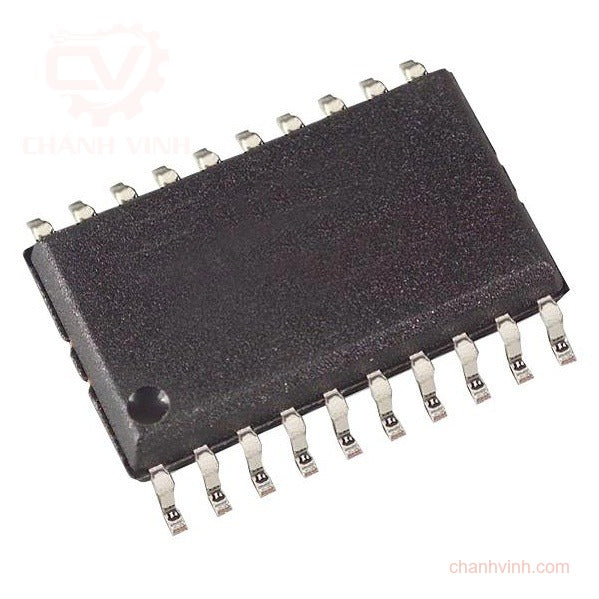

MICROCHIP TECHNOLOGY IC: PIC microcontroller; 7kB; 32MHz; 2.3÷5.5VDC; SMD; SO20; PIC16 [PIC16F15344-I/SO]
The Microchip microcontroller features analog, core independent peripherals and communication peripherals, combined with eXtreme low power (XLP) technology for a wide range of general purpose and low power applications. The devices feature multiple PWMs, multiple communication, temperature sensor, and memory features like Memory Access Partition (MAP) to support customers in data protection and bootloader applications, and Device Information Area (DIA) which stores factory calibration values to help improve temperature sensor accuracy. C Compiler optimized RISC architecture DC 32 MHz clock input 125 ns minimum instruction cycle Interrupt capability 16-Level deep hardware stack 8 bit Timer2 with hardware limit timer (HLT) 16-bit Timer0/1 Low current power on reset (POR) Configurable Power up timer (PWRTE) Brown out reset (BOR) low power BOR (LPBOR) Option
The Microchip microcontroller features analog, core independent peripherals and communication peripherals, combined with eXtreme low power (XLP) technology for a wide range of general purpose and low power applications. The devices feature multiple PWMs, multiple communication, temperature sensor, and memory features like Memory Access Partition (MAP) to support customers in data protection and bootloader applications, and Device Information Area (DIA) which stores factory calibration values to help improve temperature sensor accuracy.
C Compiler optimized RISC architecture
DC 32 MHz clock input
125 ns minimum instruction cycle
Interrupt capability
16-Level deep hardware stack
8 bit Timer2 with hardware limit timer (HLT)
16-bit Timer0/1
Low current power on reset (POR)
Configurable Power up timer (PWRTE)
Brown out reset (BOR)
low power BOR (LPBOR) Option
