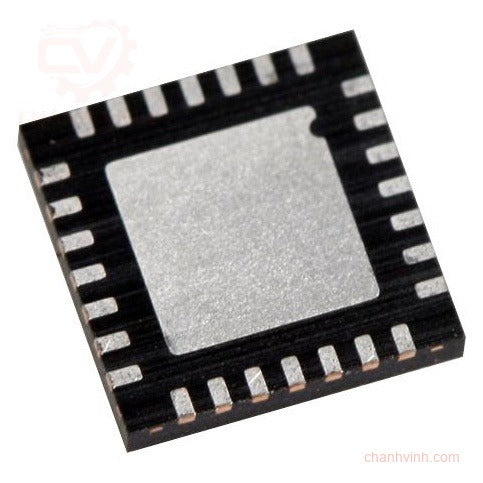

MICROCHIP TECHNOLOGY IC: PIC microcontroller; 14kB; 32MHz; 2.3÷5.5VDC; SMD; UQFN28; tube [PIC16F15355-I/MV]
The Microchip PIC16F15355 is a 8 bit product family feature essential peripherals like Intelligent Analog, Core Independent Peripherals and communication combined with extreme Low Power for a wide range of low power applications. The family features PWMs, multiple communication, temperature sensor and memory features like Memory Access Partition and Device Information Area. Enhanced Mid range Core with 49 Instruction 16 Stack Levels Flash Program Memory with self read and write capability Extreme Low Power IDLE and DOZE low power modes Peripheral Module Disable Peripheral Pin Select 4times 10 bit PWMs 2times Capture Compare, PWM Complementary Waveform Generator Numerically Controlled Oscillator 4x Configurable Logic Controller 17 Channel 10 bit ADC with Voltage Reference 5 bit Digital to Analog Converter 2times Comparators 1times 8 bit Timers TMR0 and TMR2 2times 16 bit Timer TMR1 Window Watchdog Timer
The Microchip PIC16F15355 is a 8 bit product family feature essential peripherals like Intelligent Analog, Core Independent Peripherals and communication combined with extreme Low Power for a wide range of low power applications. The family features PWMs, multiple communication, temperature sensor and memory features like Memory Access Partition and Device Information Area.
Enhanced Mid range Core with 49 Instruction 16 Stack Levels
Flash Program Memory with self read and write capability
Extreme Low Power
IDLE and DOZE low power modes
Peripheral Module Disable
Peripheral Pin Select
4times 10 bit PWMs
2times Capture Compare, PWM
Complementary Waveform Generator
Numerically Controlled Oscillator
4x Configurable Logic Controller
17 Channel 10 bit ADC with Voltage Reference
5 bit Digital to Analog Converter
2times Comparators
1times 8 bit Timers TMR0 and TMR2
2times 16 bit Timer TMR1
Window Watchdog Timer
