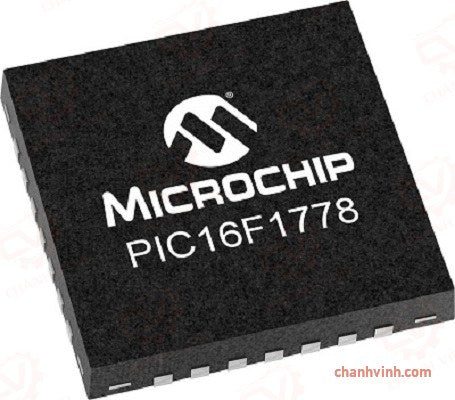

MICROCHIP TECHNOLOGY IC: PIC microcontroller; 32MHz; 2.3÷5.5VDC; SMD; UQFN28; PIC16 [PIC16F1778-E/MX]

The Microchip PIC16F177X microcontrollers feature a high level of integration of Intelligent Analog and digital peripherals for a wide range of applications, such as lighting, power supplies, battery charging, motor control and other general purpose applications. These devices deliver multiple Op Amps, 5 to 10 bit DACs, High Speed Comparators, 10-bit ADC, 10 to 16 bit PWMs, Programmable Ramp Generator and other peripherals that can be connected internally to create closed loop systems without using pins or PCB area. The 10 and 16-bit PWMs, the Digital Signal Modulator and tristate output Op Amp can be used together to create a LED dimming engine. The Peripheral Pin Select functionality provides flexibility, eases PCB layout and peripheral utilization by allowing digital peripheral pin mapping to any I/O. Enhanced Mid range Core with 49 Instruction 16 Stack Levels Flash Program Memory with self read and write capability 128 Bytes of Non Volatile Data Storage High-Endurance Flash Internal clock speeds from 32MHz to 31kHz 3times Op Amps 3times 10-bit DACs 3times 5 bit DACs 6times High Speed Comparators 10 bit ADC with 17 channels Zero Cross Detect 3times Programmable Ramp Generator 3times 10 bit PWMs 3times 16 bit PWMs 2times 100mA I/Os 3times Capture, Compare, PWM 3times Complementary Output Generator 4times Configurable Logic Controller
