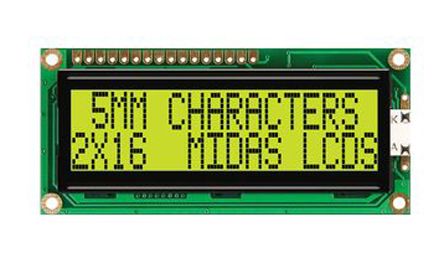

Midas MC21605G6WD-SPTLY-V2 G Alphanumeric LCD Display Yellow-Green, 2 Rows by 16 Characters, Transflective [MC21605G6WD-SPTLY-V2]; 135-9760
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 2 Rows by 16 Characters |
| Characters per Row | 16 |
| Character Rows | 2 |
| Character Height | 5.2mm |
| Character Width | 3mm |
| Viewing Area Dimensions | 64.5 x 16.4mm |
| Viewing Area Height | 16.4mm |
| Viewing Area Width | 64.5mm |
| Interface Type | 8-bit |
| External Depth | 13.5mm |
| Backlight Type | LED |
| Background Colour | Yellow-Green |
| External Height | 44mm |
| External Width | 84mm |
| External Dimensions | 84 x 13.5 x 44mm |
| Display Matrix Technology | STN |
| Display Mode | Transflective |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Bezel Included | Yes |
| Voltage Rating | 4.7 → 5.5V |
| Operating Temperature Range | -20 → +70°C |
| Series | G |
| Driver Mounting | COB |
| Current Rating | 1.5mA |
