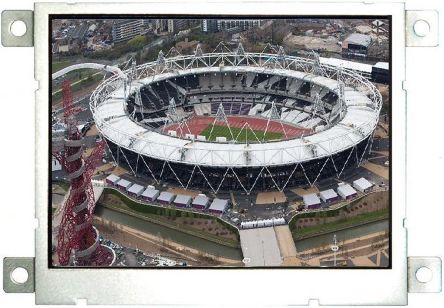

Midas MCT035T6TW320240LML TFT LCD Colour Display / Touch Screen, 3.5in QVGA, 320 x 240pixels [MCT035T6TW320240LML]; 885-1465
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 3.5in |
| Interface Type | Parallel, Serial |
| Resolution | 320 x 240pixels |
| Touch Screen | Yes |
| Viewing Area Dimensions | 71.7 x 54.2mm |
| Touch Screen Type | Resistive |
| Supply Voltage | 4 V |
| Backlight Type | LED |
| Display Mode | Transmissive |
| AC or DC Input Voltage | Dc |
| Dimensions | 76.9 x 63.9 x 4.3mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Graphics Array Type | QVGA |
| Series | T |
| Current Rating | 7.7mA |
| Viewing Area Height | 54.2mm |
| Width | 76.9mm |
| Power Dissipation | 384mW |
| Operating Temperature Range | -20 → +70°C |
| Number of Colours | 262144 |
| Voltage Rating | 3.6 V dc, 10 V dc |
| Standards Met | ANSI / ASQC Z1.4-1993 |
| Height | 4.3mm |
| Depth | 63.9mm |
| Aspect Ratio | 0.16875 |
| Brightness | 250cd/m² |
| Response Time | 50ms |
| Viewing Area Width | 71.7mm |
