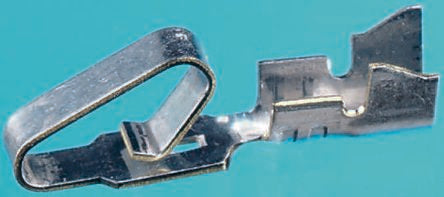

08-50-0133 Molex KK 396 Female Crimp Terminal Contact 22AWG [08-50-0133]; 161-9607
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| For Use With | KK 396 Connector Housing |
| Series | KK 396 |
| Minimum Wire Size mm² | 0.1mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 26AWG |
| Contact Plating | Tin |
| Contact Material | Phosphor Bronze |
| Maximum Wire Size AWG | 22AWG |
| Series Number | 2578 |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +75°C |
