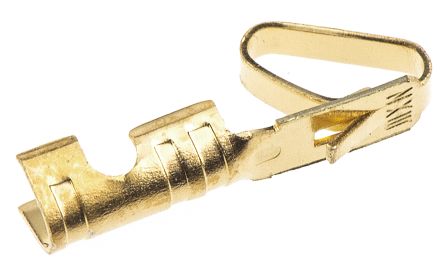

08-56-0110 Molex KK 254 Female Crimp Terminal Contact 22AWG [08-56-0110]; 678-3155
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| For Use With | KK 254 Connector Housing |
| Series | KK 254 |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Termination Method | Crimp |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 30AWG |
| Contact Material | Brass |
| Maximum Wire Size AWG | 22AWG |
| Series Number | 2759 |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +75°C |
