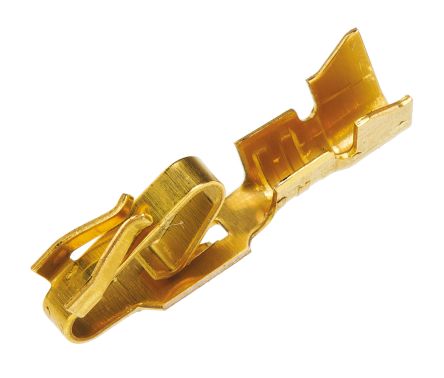

08-58-0189 Molex KK 396, Trifurcon Female Crimp Terminal Contact 18AWG [08-58-0189]; 670-2926
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| For Use With | KK 396 Connector Housing |
| Series | KK 396, Trifurcon |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Termination Method | Crimp |
| Minimum Wire Size AWG | 20AWG |
| Contact Plating | Gold |
| Maximum Wire Size AWG | 18AWG |
| Contact Material | Phosphor Bronze |
| Series Number | 6838 |
| Maximum Contact Resistance | 6mΩ |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +75°C |
