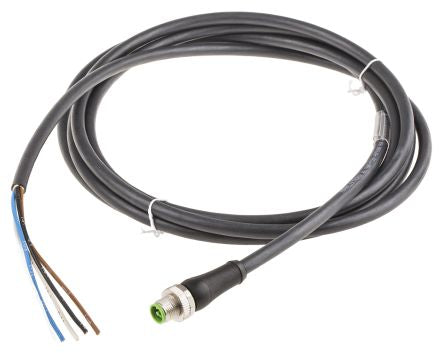

Murrelektronik Limited 7000 Series, Straight M12 to Unterminated Connector & Cable, 4 Core , 3m Cable [7000-P7201-P070300]; 144-1233
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 3m |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Current Rating | 0 |
| Sheath Colour | Black |
| IP Rating | IP65, IP67 |
| Voltage Rating | 63 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 1.5 mm² |
| Outer Sheath Material | Polyurethane |
| Insulation Material | PP |
| Minimum Bend Radius | 7.5 x 7.7 (Fixing) mm, 10 x 7.7 (Moving) mm |
| American Wire Gauge | 16 |
| Sheath Material | Polyurethane PUR |
| Connector A Housing Gender | Plug |
| Outer Diameter | 7.7mm |
| Maximum Operating Temperature | +85°C |
| Series | 7000 |
| Minimum Operating Temperature | -25°C |
| Shielding | Unshielded |
| Oil Resistant | Yes |
| Standards Met | CSA, EN 60529, IEC 60664-1 Category I, UL |
