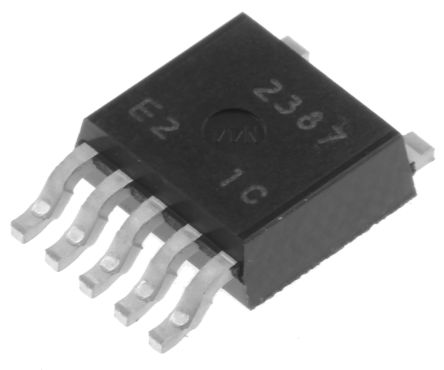

New Japan Radio NJM2387DL3-TE1, LDO Regulator, 1A Adjustable, 1.5 → 20 V, ±2% 5-Pin DPAK [NJM2387DL3-TE1]; 713-9095
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.5 → 20 V |
| Output Type | Adjustable |
| Package Type | TO-252-DL3 |
| Maximum Output Current | 1A |
| Mounting Type | Surface Mount |
| Minimum Input Voltage | 3.8 V |
| Maximum Input Voltage | 35 V |
| Pin Count | 5 |
| Polarity | Positive |
| Number of Outputs | 1 |
| Quiescent Current | 5mA |
| Accuracy | ±2% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Power Rating | 1W |
| Reference Voltage | 1.285V |
| Line Regulation | 0.16 %/V |
| Length | 6.54mm |
| Enable | Yes |
| Dimensions | 6.54 x 6.04 x 2.29mm |
| Width | 6.04mm |
| Load Regulation | 1.4 %/A |
| Height | 2.29mm |
