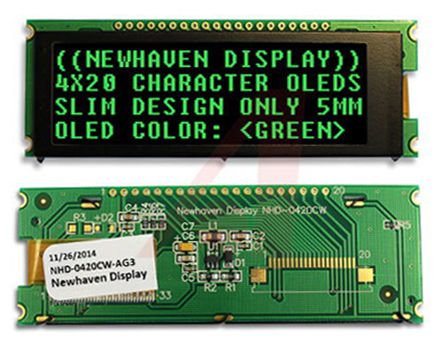

NEWHAVEN DISPLAY INTERNATIONAL NHD-0420CW-AG3 LCD Colour Display [NHD-0420CW-AG3]; 909-1963
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Interface Type | I2C, SPI, 4/8-Bit Parallel |
| Viewing Area Dimensions | 22.82 x 72.42mm |
| Touch Screen Type | None |
| Supply Voltage | 2.4 → 5.5 V |
| Backlight Type | LED |
| AC or DC Input Voltage | Dc |
| Dimensions | 6.5 x 92 x 31.5mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Width | 92mm |
| Current Rating | 135mA |
| Standards Met | RoHS Compliant |
| Brightness | 150cd/m² |
| Response Time | 10 μs |
| Viewing Area Width | 72.42mm |
| Viewing Area Height | 22.82mm |
| Contrast Ratio | 10000:1 |
| Depth | 31.5mm |
| Voltage Rating | 2.8V |
| Number of Colours | 1 |
| Operating Temperature Range | -40 → +85°C |
| Height | 6.5mm |
