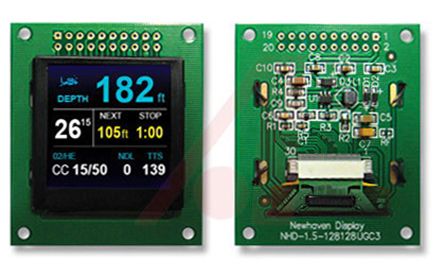

NEWHAVEN DISPLAY INTERNATIONAL NHD-1.5-128128UGC3 LCD Colour Display, 1.5in, 128 x 96pixels [NHD-1.5-128128UGC3]; 909-1973
Mã kho: 9091973
Mã nhà sản xuất: NHD-1.5-128128UGC3
Tên nhà sản xuất:
NEWHAVEN DISPLAY INTERNATIONAL
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 1.5in |
| Resolution | 128 x 96pixels |
| Viewing Area Dimensions | 26.71 x 20.28mm |
| Supply Voltage | 2.4 → 3.5 V |
| Touch Screen Type | None |
| Backlight Type | LED |
| AC or DC Input Voltage | Dc |
| Dimensions | 5.1 x 45 x 45mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | 70°C |
| Operating Temperature Range | -30 → +70°C |
| Standards Met | RoHS Compliant |
| Current Rating | 12 (Logic) mA, 310 (Display) mA |
| Viewing Area Height | 20.28mm |
| Width | 45mm |
| Brightness | 100cd/m² |
| Height | 5.1mm |
| Contrast Ratio | 10000:1 |
| Viewing Area Width | 26.71mm |
| Response Time | 10 μs |
| Number of Colours | 1 |
| Depth | 45mm |
| Voltage Rating | 3V |
