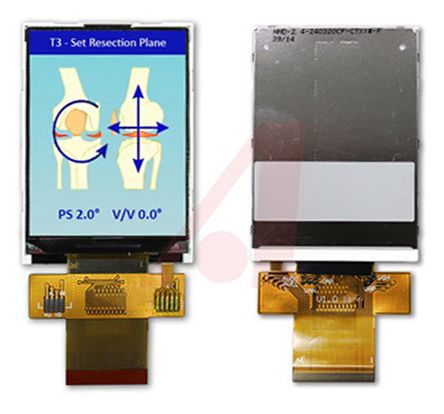

NEWHAVEN DISPLAY INTERNATIONAL NHD-2.4-240320CF-CTXI#-F TFT LCD Colour Display, 2.4in, 240 x 320pixels [NHD-2.4-240320CF-CTXI#-F]; 909-2001
Mã kho: 9092001
Mã nhà sản xuất: NHD-2.4-240320CF-CTXI#-F
Tên nhà sản xuất:
NEWHAVEN DISPLAY INTERNATIONAL
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 2.4in |
| Interface Type | Parallel |
| Resolution | 240 x 320pixels |
| Touch Screen | No |
| Viewing Area Dimensions | 48.96 x 42.32mm |
| Touch Screen Type | None |
| Supply Voltage | 1.65 → 3.3 (Logic) V, 2.4 → 3.3 (LCD) V |
| Backlight Type | LED |
| AC or DC Input Voltage | Dc |
| Dimensions | 2.4 x 42.8 x 59.91mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
| Standards Met | RoHS Compliant |
| Response Time | 8 (Rise) ms, 24 (Fall) ms |
| Viewing Area Width | 42.32mm |
| Width | 42.8mm |
| Viewing Area Height | 48.96mm |
| Current Rating | 9mA |
| Depth | 59.91mm |
| Voltage Rating | 2.8V |
| Number of Colours | 262144 |
| Operating Temperature Range | -20 → +70°C |
| Contrast Ratio | 8.33402777777778 |
| Height | 2.4mm |
| Brightness | 180cd/m² |
