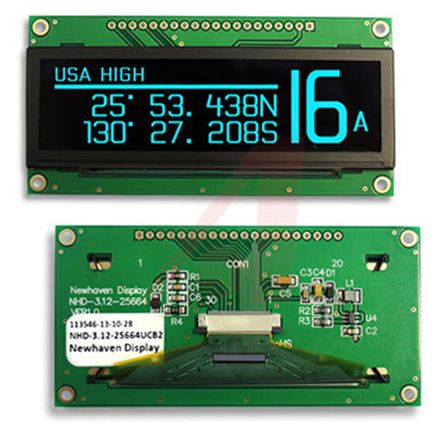

NEWHAVEN DISPLAY INTERNATIONAL NHD-3.12-25664UCB2 LCD Colour Display, 3.12in, 128 x 64pixels [NHD-3.12-25664UCB2]; 909-2020
Mã kho: 9092020
Mã nhà sản xuất: NHD-3.12-25664UCB2
Tên nhà sản xuất:
NEWHAVEN DISPLAY INTERNATIONAL
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diagonal Display Size | 3.12in |
| Resolution | 128 x 64pixels |
| Viewing Area Dimensions | 33 x 66mm |
| Touch Screen Type | None |
| Supply Voltage | 3.5 V |
| Backlight Type | LED |
| AC or DC Input Voltage | Dc |
| Dimensions | 3.5 x 82 x 47.5mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Brightness | 100cd/m² |
| Width | 82mm |
| Number of Colours | 1 |
| Operating Temperature Range | -40 → +85°C |
| Contrast Ratio | 83.3340277777778 |
| Height | 3.5mm |
| Viewing Area Height | 33mm |
| Depth | 47.5mm |
| Voltage Rating | 3.5V |
| Standards Met | RoHS Compliant |
| Response Time | 10 μs |
| Current Rating | 4 (Logic) mA, 310 (Display) mA |
| Viewing Area Width | 66mm |
