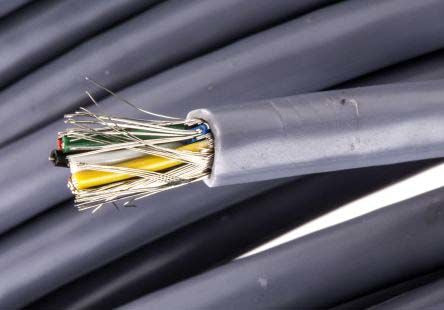

Nexans 7 Conductor Braid, Foil Industrial Cable 0.22 mm² Grey PVC Sheath, 100m Reel, SMBL Series [10038951]; 168-2209
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 7 |
| Cross Sectional Area | 0.22 mm² |
| Screened/Unscreened | Screened |
| Length | 100m |
| Sheath Colour | Grey |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 4.9mm |
| Current Rating | 0.0416666666666667 |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.2 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 500 V |
| Series | SMBL |
| Minimum Bend Radius | 10 x Diameter |
| Conductor Material | Tinned Copper |
| Drain Wire | No |
| Minimum Operating Temperature | -20°C |
| Insulation Material | PVC |
