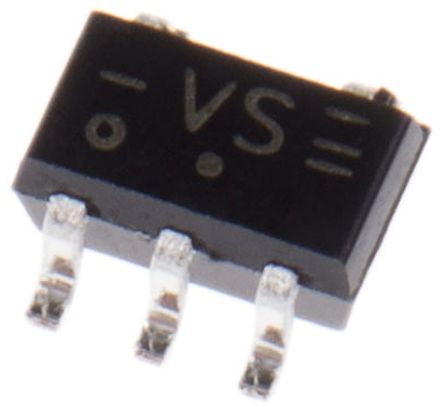

Nexperia 74AHC1G02GW,125, 2-Input NOR Logic Gate, 5-Pin TSSOP [74AHC1G02GW,125]; 166-1434
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NOR |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 5 |
| Logic Family | AHC |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns @ 5 V, 11.4 ns @ 3.3 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 8mA |
| Height | 1mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.25 x 1.35 x 1mm |
| Length | 2.25mm |
