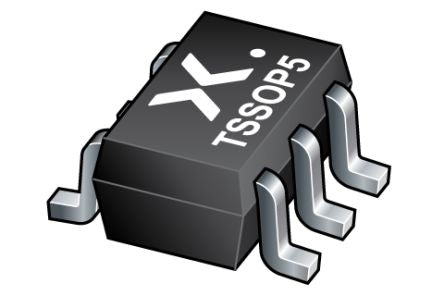

Nexperia 74AHC1G08GW-Q100,1, 2-Input AND Logic Gate, 5-Pin TSSOP [74AHC1G08GW-Q100,1]; 152-6513
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Package Type | TSSOP |
| Pin Count | 5 |
| Logic Family | 74AHC |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Propagation Delay Time @ Maximum CL | 16 ns @ 50 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Temperature | +125 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 2.25mm |
| Dimensions | 2.25 x 1.35 x 1mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Height | 1mm |
