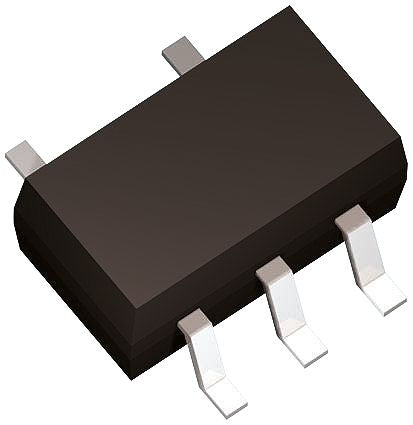

Nexperia 74AHCT1G04GV,125 Inverter, 5-Pin SC-74A [74AHCT1G04GV,125]; 146-0516
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Output Type | Single Ended |
| Schmitt Trigger Input | No |
| Maximum Propagation Delay Time @ Maximum CL | 10 ns @ 50 pF |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Mounting Type | Surface Mount |
| Package Type | SC-74A |
| Pin Count | 5 |
| Logic Family | AHCT |
| Dimensions | 3.1 x 1.7 x 1mm |
| Height | 1mm |
| Maximum Operating Temperature | +125 °C |
| Propagation Delay Test Condition | 50pF |
| Length | 3.1mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Width | 1.7mm |
| Minimum Operating Supply Voltage | 4.5 V |
