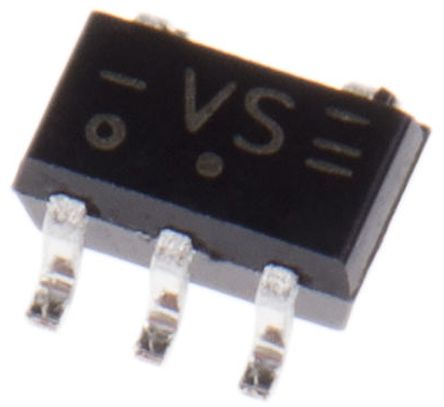

Nexperia 74AHCT1G04GW,125 Inverter, 5-Pin TSSOP [74AHCT1G04GW,125]; 178-7135
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Number of Elements per Chip | 1 |
| Schmitt Trigger Input | No |
| Maximum Propagation Delay Time @ Maximum CL | 7.7 ns @ 5.5 V |
| Maximum High Level Output Current | -8mA |
| Maximum Low Level Output Current | 8mA |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 5 |
| Logic Family | AHCT |
| Dimensions | 2.25 x 1.35 x 1mm |
| Height | 1mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 2.25mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 4.5 V |
