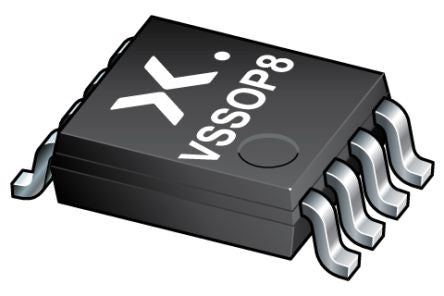

Nexperia 74AUP2G08DC,125, Dual 2-Input AND Schmitt Trigger Logic Gate, 8-Pin VSSOP [74AUP2G08DC,125]; 153-2845
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | Yes |
| Package Type | VSSOP |
| Pin Count | 8 |
| Logic Family | AUP |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ Maximum CL | 24 @ 30 pF |
| Minimum Operating Supply Voltage | 0.8 V |
| Maximum Low Level Output Current | 4mA |
| Dimensions | 2.1 x 2.4 x 0.85mm |
| Width | 2.4mm |
| Length | 2.1mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.85mm |
| Maximum Operating Temperature | +125 °C |
| Output Type | ECL |
| Propagation Delay Test Condition | 30pF |
