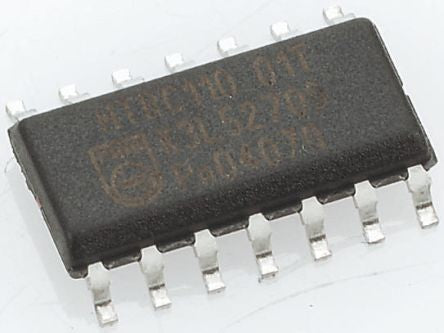

NXP 74HC11D,652, Triple 3-Input AND Logic Gate, 2 → 6 V, 14-Pin SOIC [74HC11D,652]; 483-6386
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 3 |
| Number of Inputs per Gate | 3 |
| Schmitt Trigger Input | No |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | HC |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 17 ns @ 6 V, 20 ns @ 4.5 V, 100 ns @ 2 V |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Length | 8.75mm |
| Dimensions | 8.75 x 4 x 1.45mm |
| Width | 4mm |
| Height | 1.45mm |
| Maximum Operating Temperature | +125 °C |
