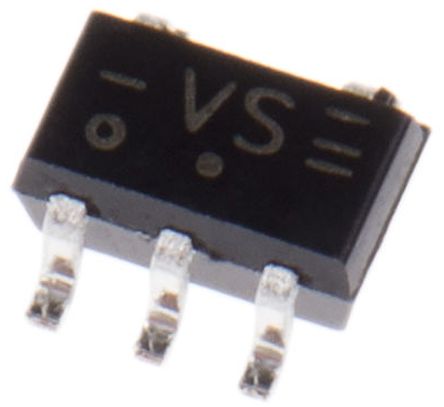

Nexperia 74HC1G08GW,125, 2-Input AND Logic Gate, 5-Pin TSSOP [74HC1G08GW,125]; 165-9979
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 5 |
| Logic Family | HC |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -2.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 135ns |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 2.6mA |
| Length | 2.25mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 2.25 x 1.35 x 1mm |
| Width | 1.35mm |
| Height | 1mm |
| Output Type | Current |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
