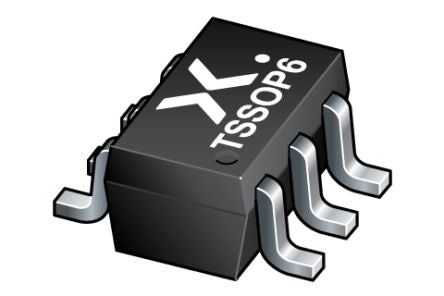

Nexperia 74HC2G04GW,125 Dual Schmitt Trigger CMOS Inverter, 6-Pin SC-88 [74HC2G04GW,125]; 153-2919
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Buffer, Inverter |
| Input Type | CMOS, Schmitt Trigger |
| Output Type | CMOS |
| Number of Elements per Chip | 2 |
| Schmitt Trigger Input | Yes |
| Maximum Propagation Delay Time @ Maximum CL | 110 ns @ 50 pF |
| Maximum High Level Output Current | -5.2mA |
| Maximum Low Level Output Current | 5.2mA |
| Mounting Type | Surface Mount |
| Package Type | SC-88 |
| Pin Count | 6 |
| Logic Family | HC |
| Dimensions | 2.2 x 1.35 x 1mm |
| Height | 1mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Width | 1.35mm |
| Maximum Operating Supply Voltage | 6 V |
| Length | 2.2mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
