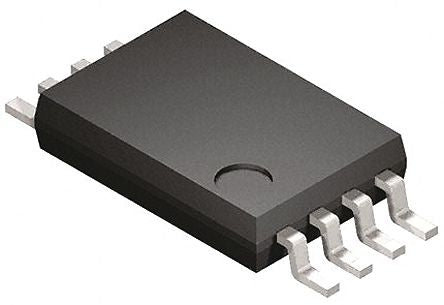

Nexperia 74HC2G08DP,125, Dual 2-Input AND Logic Gate, 8-Pin TSSOP [74HC2G08DP,125]; 166-0006
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 8 |
| Logic Family | HC |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 6 V |
| Maximum High Level Output Current | -5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 110 ns @ 15 pF |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Low Level Output Current | 5.2mA |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Maximum Operating Temperature | +125 °C |
| Propagation Delay Test Condition | 15pF |
| Width | 3.1mm |
| Length | 3.1mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.95mm |
| Output Type | Single Ended |
