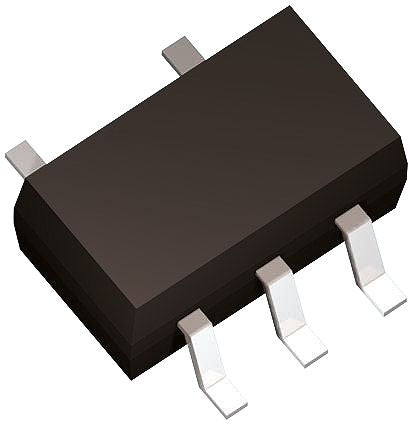

Nexperia 74HCT1G08GV,125, 2-Input AND Logic Gate, 5-Pin SC-74A [74HCT1G08GV,125]; 146-0536
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SC-74A |
| Pin Count | 5 |
| Logic Family | HCT |
| Input Type | TTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -2.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 135 ns @ 50 pF |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 2.6mA |
| Width | 1.7mm |
| Dimensions | 3.1 x 1.7 x 1mm |
| Length | 3.1mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Height | 1mm |
| Minimum Operating Temperature | -40 °C |
| Output Type | Single Ended |
