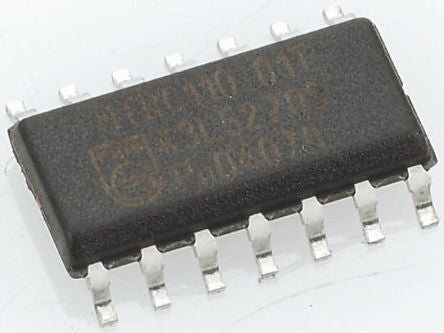

NXP 74HCT20D,652, Dual 4-Input NAND Logic Gate, 4.5 → 5.5 V, 14-Pin SOIC [74HCT20D,652]; 436-7650
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 4 |
| Schmitt Trigger Input | No |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | HCT |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ Maximum CL | 28 ns @ 4.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Low Level Output Current | 4mA |
| Width | 4mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 8.75 x 4 x 1.45mm |
| Length | 8.75mm |
| Maximum Operating Temperature | +125 °C |
| Height | 1.45mm |
