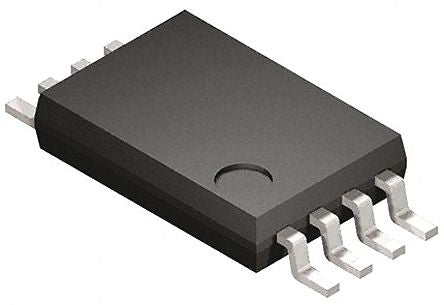

Nexperia 74LVC2G08DP,125, Dual 2-Input AND Logic Gate, 8-Pin TSSOP [74LVC2G08DP,125]; 165-8631
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | TSSOP |
| Pin Count | 8 |
| Logic Family | LVC |
| Input Type | TTL |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ Maximum CL | 6.7 ns @ 50 pF |
| Minimum Operating Supply Voltage | 1.65 V |
| Maximum Low Level Output Current | 32mA |
| Height | 0.95mm |
| Output Type | Single Ended |
| Propagation Delay Test Condition | 50pF |
| Length | 3.1mm |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 3.1mm |
