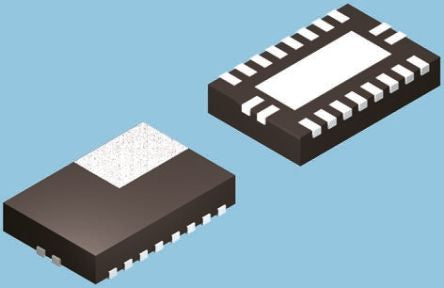

NXP 74LVCH245ABQ,115, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 1.2 → 3.6 V, 20-Pin DHVQFN [74LVCH245ABQ,115]; 510-627
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | LVC |
| Logic Function | Bus Transceiver |
| Number of Elements per Chip | 1 |
| Number of Channels per Chip | 8 |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | DHVQFN |
| Pin Count | 20 |
| Input Level | LVTTL |
| Output Level | LVTTL |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 17 ns@ 1.2 V |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Height | 0.95mm |
| Width | 2.6mm |
| Minimum Operating Supply Voltage | 1.2 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Dimensions | 4.6 x 2.6 x 0.95mm |
| Length | 4.6mm |
| Maximum Operating Temperature | +125 °C |
